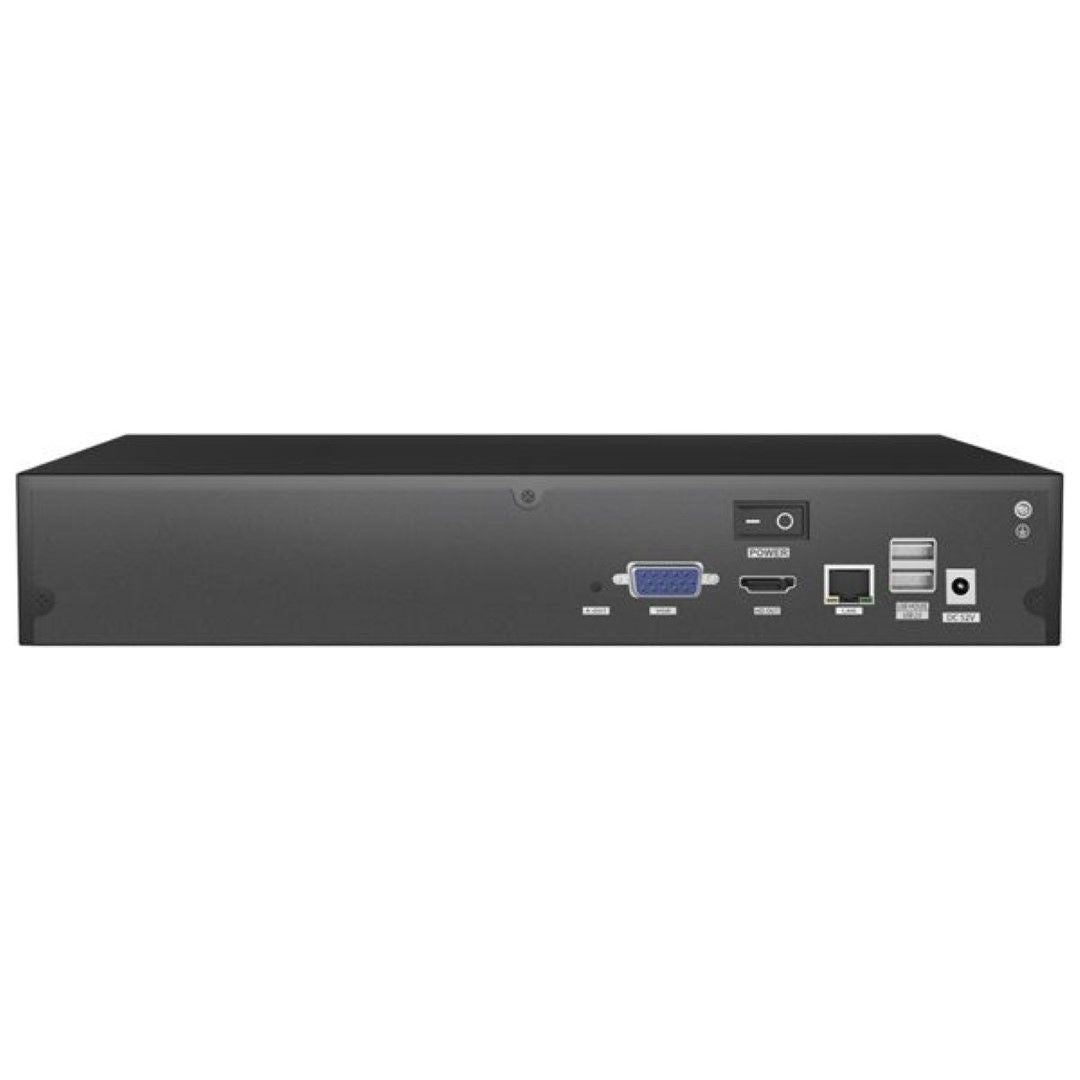

Foscam FNA216H - 16-Channel Network Video Recorder

The Foscam FNA216H is a professional 16-channel network video recorder (NVR) with support for 8MP/4K cameras and a built-in PoE switch. This powerful NVR offers reliable 24/7 recording for up to 16 IP cameras with plug & play setup and remote access via app and web browser.

Main Features

• 16 channels: Connect up to 16 IP cameras for complete surveillance of large properties
• 8MP/4K support: Recording in Ultra HD resolution for crystal-clear images
• Built-in 16-port PoE switch: Cameras receive power and data through a single cable
• Dual HDD slots: Install up to 2x 16TB hard drives for a maximum of 32TB storage
• H.264+ compression: Up to 50% less storage space with the same image quality
• Plug & play: Automatic recognition of Foscam cameras
• ONVIF compatible: Works with IP cameras from other brands
• Remote access: Free Foscam app and VMS software for live viewing from afar
• HDMI 4K output: Connect to a 4K screen for Ultra HD display

16-Channel Capacity for Large Installations

With 16 channels, the FNA216H is ideal for large homes, business premises, shops, warehouses, and office buildings. Monitors entire properties with one central system. All 16 cameras can record simultaneously and be shown in split screen (1/4/9/16 view).

Built-in 16-Port PoE Switch

The FNA216H has a built-in 16-port PoE switch (IEEE 802.3af/at) so you do not need a separate PoE switch. Each port supplies up to 30W for cameras with spotlight or PTZ functions. Connect cameras directly to the NVR with one Ethernet cable per camera – no separate power adapters needed.

8MP/4K Ultra HD Support

The FNA216H supports cameras up to 8 megapixels (4K Ultra HD) for maximum image quality. Also compatible with lower resolutions such as 5MP, 4MP, 2MP, and 1080p. You can mix different resolutions – for example, 4x 4K cameras for important zones and 12x 2MP cameras for other areas.

Dual HDD Slots for Maximum Storage

The NVR has two SATA slots for hard drives up to 16TB per slot (maximum 32TB total). Hard drives are not included but available separately.

Plug & Play Installation

Foscam IP cameras are automatically recognized and configured when you connect them to the PoE ports. No manual IP setup needed. Connect the camera, wait 30 seconds, and the image appears automatically on the screen. ONVIF cameras from other brands are also supported (manual addition required).
